Power Strobes - 3000 ML / RML
Industrial Heavy Duty Strobe Light
Tomar Power Strobes - 3000 ML

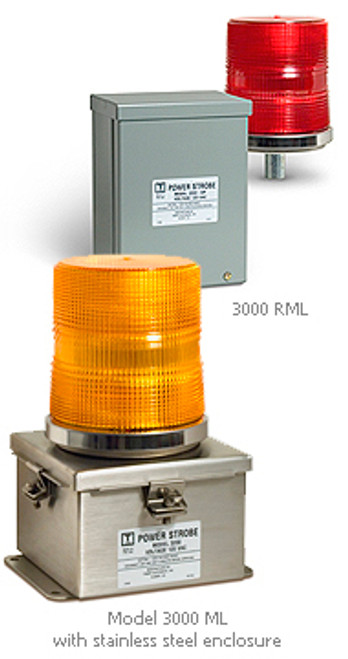

The model 3000 family of single flash strobe lights is designed for heavy duty industrial use in steel mills and large manufacturing plants. The ML version is a 360° self contained unit consisting of a strobe lamp and Lexan® lens assembly mounted on a NEMA 4 enclosed power supply.
The 250VDC 3000 series strobe has a flash rate of 60 flashes per minute and light intensity of 425 effective candlepower. It is available in six lens colors (amber, blue, clear, green, purple, and red). Each strobe contains a built-in RFI filter to protect against harmful electrical interference.
Features
- NEMA 4X enclosure
- Built-in RFI Filters
- Polarity protected
- Solid state power supply
- Optional Stainless Steel enclosure
- Optional Dome Guard (ML version)
- Optional Lens Dust Cove
- Strobe head can be mounted remotely from power supply
Architect and Engineer Specifications
Power Strobe 3000 Series
The visual signaling beacon shall be Tomar model 3000 series or approved equal. The light source shall be a plug-in field replaceable single-flash xenon strobe lamp. The warning beacon shall have a Lexan® lens and be designed to accept a dome guard. Light intensity is to be 425 effective candlepower. The beacon must have the option to be mounted remotely from the power base, and the strobe tube is to be rated at 24,000 hours lamp life. Voltage shall be 250VDC. Strobe light shall be designed to accept a dome guard, lens dust cover, and stainless steel enclosure.
The model 3200 and 3300 family of single flash strobe lights is designed for heavy duty industrial use in steel mills and large manufacturing plants. The ML version is a 360° self contained unit consisting of a strobe lamp and Lexan® lens assembly mounted on a NEMA 4 enclosed power supply.
The 120 VAC 3200 and 240 VAC 3300 series strobes have a flash rate of 85 flashes per minute and light intensity of 425 effective candlepower. They are available in six lens colors (amber, blue, clear, green, purple, and red). Each strobe contains a built-in RFI filter to protect against harmful electrical interference..
Features
- NEMA 4X enclosure
- Built-in RFI Filters
- Polarity protected
- Solid state power supply
- Optional Stainless Steel enclosure
- Optional Dome Guard (ML version)
- Optional Lens Dust Cove
- Strobe head can be mounted remotely from power supply
*ECP (Effective Candlepower) is the intensity that would appear to an observer if the light were burning steadily.
**Peak Candlepower is the maximum light intensity generated by a flashing light during its light pulse.
| Item | Description |
| Light Output | 425 effective candlepower (ECP)* |
| Flash Rate | 60 FPM |
| Operating Current | 0.07Amp average |
| Power Supply Output | 15 Watts — 10 joules per flash. 1,000,000 peak candlepower** |
| Size and Weight | ML — 10.75” tall x 6.75”sq ( 228mm x 171mm) Weight = 6.5 lbs. (2.94kg) Power Supply Enclosure — 8.25” tall x 6” wide x 4” deep ( 209mm x 153mm) Remote beacon = 5.5”dia. x 6.75”tall (139mm x 171mm) Total weight = 7lbs. (3.17kg) |
