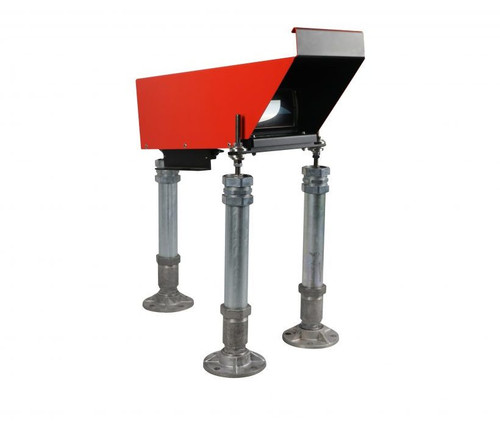

Precision Approach Path Indicator (PAPI) AV-PAPI

Series 3 LED PAPI recently completed FAA L-880/881 (L) Intertek certification to AC 150/5345-28H Style A Class I (certification pending for Style B).

It also completed ICAO photometric and chromaticity third party testing. Our Series 3 PAPI meets both FAA and ICAO requirements in the same compact, lightweight version. Patented LED optics achieve lowest power consumption, highest intensity, and sharpest red/white transition line.

This provides critically accurate approach slope information to the pilot. Like all our PAPI versions, the Series 3 production is in the USA and has an approved FAA National Buy American Waiver.

Available for permanent or portable operations.

Patented LED Optics

Innovative optics achieve the industry’s lowest power consumption, uniform intensity, and sharpest red/white transition for critically accurate approach slope information to the pilot.

• Designed for military and commercial applications
• Available in permanent and quickly deployed portable configurations such as displaced threshold
• Visual and IR available within same optic
• Sharpest red/white transition line and lowest power consumption of any LED PAPI
• Field proven performance; hundreds of systems deployed
• Power options: AC (90-264VAC) 50/60Hz and
  DC (3 & 5 step current input, 100w transfomer per LHA)
• Fixed, wireless or manual control options
• Long lasting LEDs; minimal maintenance
