L-823 PRIMARY COLORED COMPLETE KITS

Integro Primary Colored Connector Kits

Kits are used to install Isolation Transformers into series circuits, and to make serviceable splice connections or test points in L-824 Airfield Lighting Cable on primary power circuits.

Application/Design - Integro Primary Colored Connector Kits are used to install Isolation Transformers into series circuits, and to make serviceable splice connections or test points in L-824 Airfield Lighting Cable on primary power circuits.

Where They are Used - Integro Primary Colored Connector Kits are used on all installations with our transformers and are installed in all the same regions.

Approvals - Integro Primary Colored Connector Kits are approved to the FAA L-823 specification and are certified by Intertek Testing Labs to FAA Advisory Circular 150/5345-26.

Design - Integro Primary Colored Connector Kits are molded in thermoplastic rubber for superior dielectric strength, and to ensure watertight connections in the field. Each molded kit housing is filled with insulating silicone to fill voids. They are rated 25 Amps and 5,000 Volts.

Now Offered in COLOR! : 11805-XX-BLU 11805-XX-RED | 11805-XX-GRN 11805-XX-WHT | 11805-XX-ORG 11805-XX-YLW

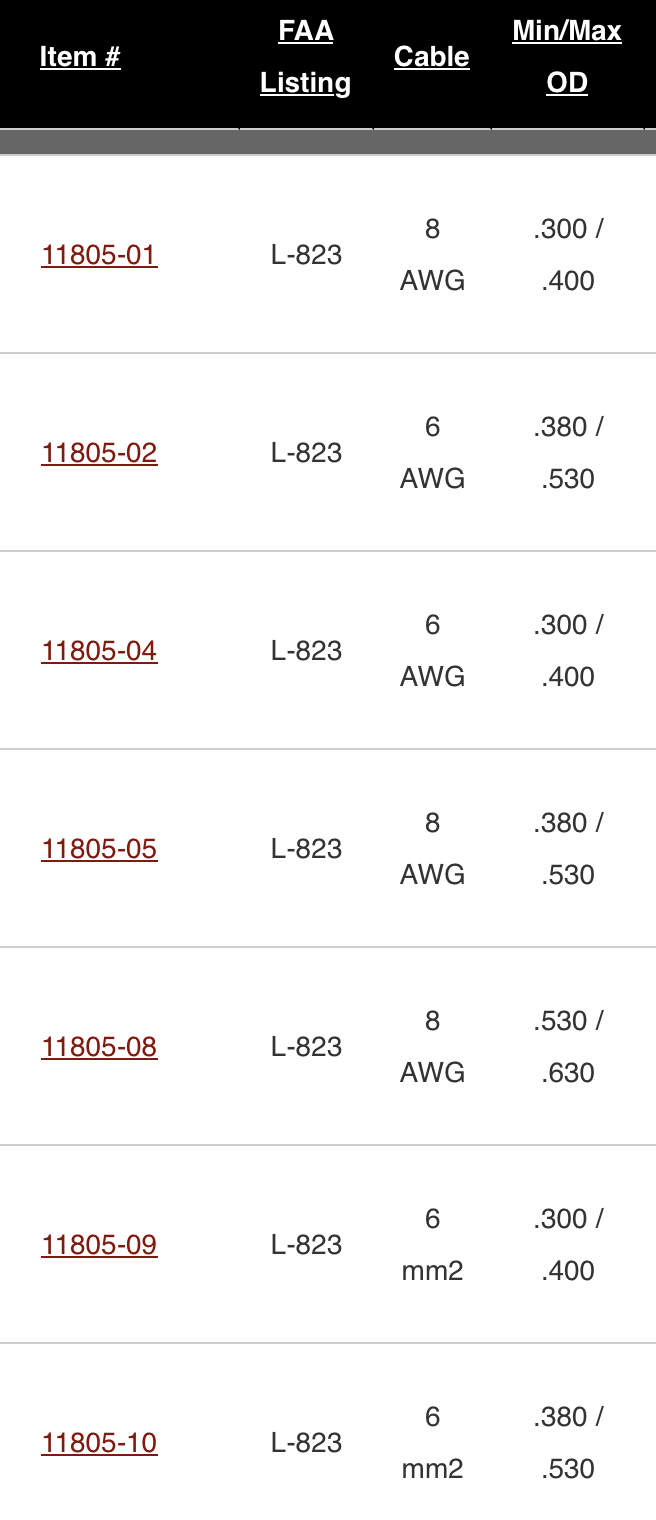

XX – Size Code (O1, 02, 04, 05, 08, 09, 10)

L-823 Primary Colored Complete Kits

We proudly manufacture all of our products in the USA, all of our Airfield Lighting Power equipment meets the Buy American Preference requirements in 49 USC 50101 and is certified to be used on AIP-funded projects requiring Buy American Preferences.
