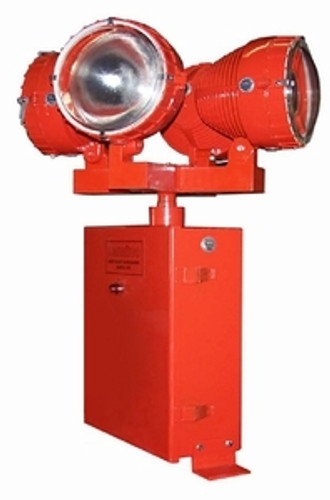

AB-1000 LED L-801A(L) BEACON
Description: The Voyager Series AB-1000, L-801A Airport Rotating Beacon offers higher efficiency, intensity, and longer life, all while minimizing total cost of maintenance and energy consumption. The Voyager Light Engines are the pinnacle of achievement in the Aviation Industry, using the highest lumen efficacy LEDs available in the market. Mated to custom designed power supplies that operate and are monitored by a microprocessor controller for each combination of FAA Beacon Types. Belt driven by a High Torque, Heavy Duty, shaded pole brushless gearmotor, and fully encapsulated precious metal rotary slip-ring assembly, the AB-1000 beacon provides reliable maintenance free power to the rotating LED lamp assemblies. Changing brushes is a thing of the past! Please contact us for any special requirements needed for your application. Let us know, and we will do our best to accommodate your requirements.
Features
• Exceeds FAA AC 150/5345-12F Specifications
• Temperature Rating: -55°C to +55°C Operation.
• High Voltage Relays rated to +125°C
• Lightweight Aluminum Enclosure
• Painted Aviation Orange per FED-STD-595.
• Completely Adjustable Beam Angle
• 50,000 Hour Rated, Low Power LED Lamps
• Hinged Door for Easy Lamp Replacement.
• LED Fault Monitoring w/ Fail-Safe Dry-Contact closure
Specs:
RPM - 12
Dimensions - 33 inches high - 25 inch diameter
Lamps - 4 sealed beam 500W PAR 64
Beam Width 5 degree wide x - 30 degree high Rated Lamp Life - 4000 hours
Power Requirements - 117V AC, 60hz, 2250 watts, 19.2 amps
